Military Radar Model: So Real It’s Almost Unreal

The 3D-printed military radar model by Scantech is not just a miniature replica. It’s a testament to the power of advanced 3D printing technology in bringing complex military engineering concepts to life — precise in every rotating joint and faithful to every tactical scale.

From CAD Blueprint to Realistic 3D-Printed Radar Model

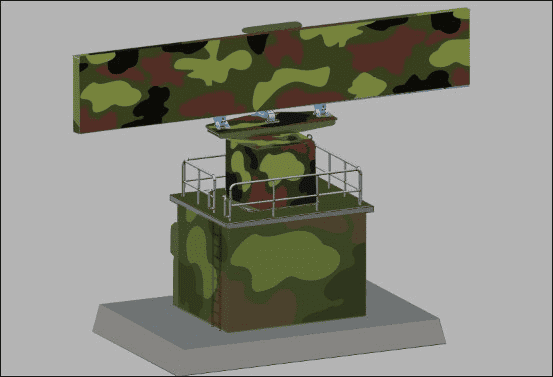

It all starts with digital data: a CAD design that fully simulates the structure of the BRS-18 radar system — a versatile, combat-grade radar system.

At Scantech, our engineers carefully process the data, segment the model for optimal printing, and generate highly accurate STL files down to the last millimeter. The goal? A military radar 3D model that does more than just look the part — it functions as a technical simulation, with detachable parts, rotating elements, and modular replaceable components.

mô hình radar quân sự in 3D

mô hình radar quân sự in 3D

mô hình radar quân sự in 3D

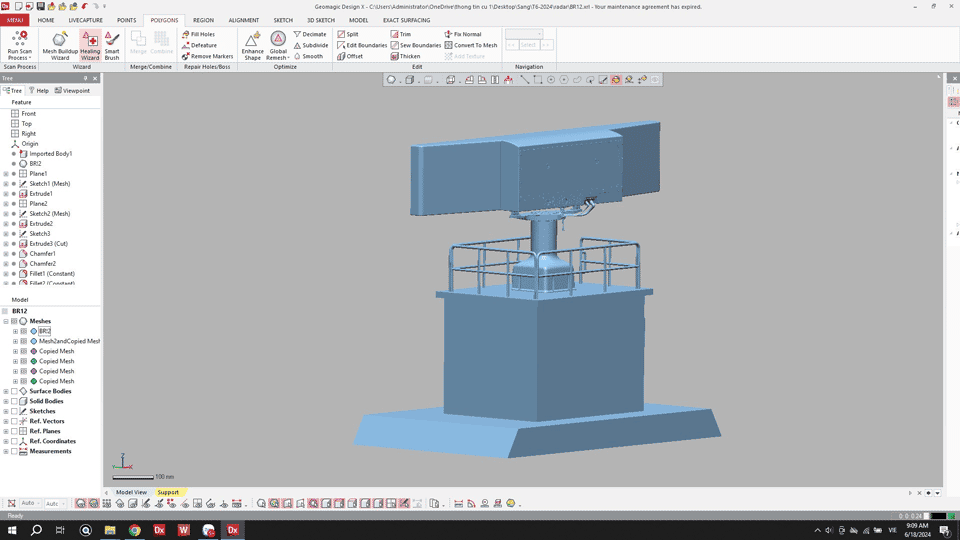

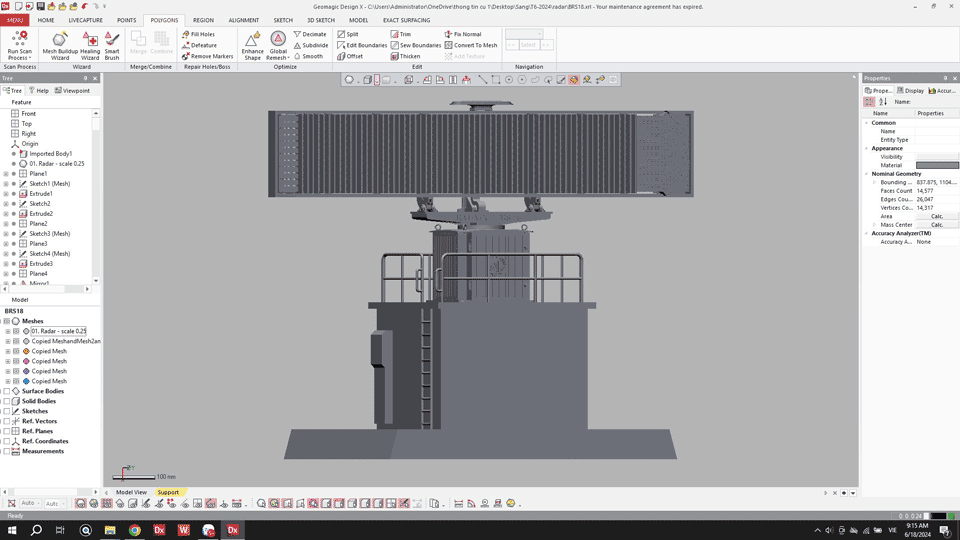

Screenshot of radar design file in CAD software

3D Printing a Radar Model: Not Just a Replica, But a Fully Functional Simulation

This radar doesn’t just “look right.” It is structurally accurate — complete with antennas, protective domes, rotating bases, and adjustable joints.

Using industrial-grade resin and SLA 3D printing systems at Scantech, even the smallest details like wind deflectors or technical railings are printed with stunning clarity.

This isn’t a display toy. It’s a strategic replica built for training, tactical rehearsals, and technical demonstrations.

military radar model

military radar model

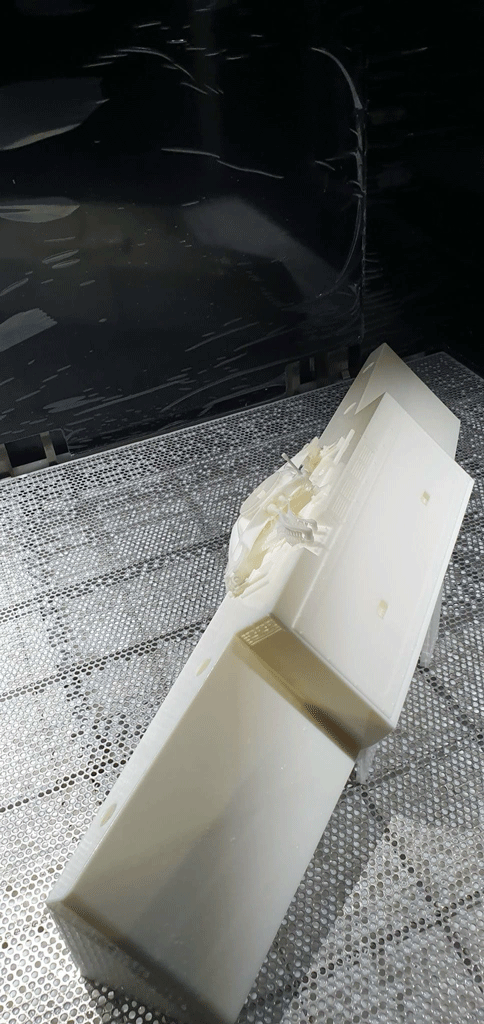

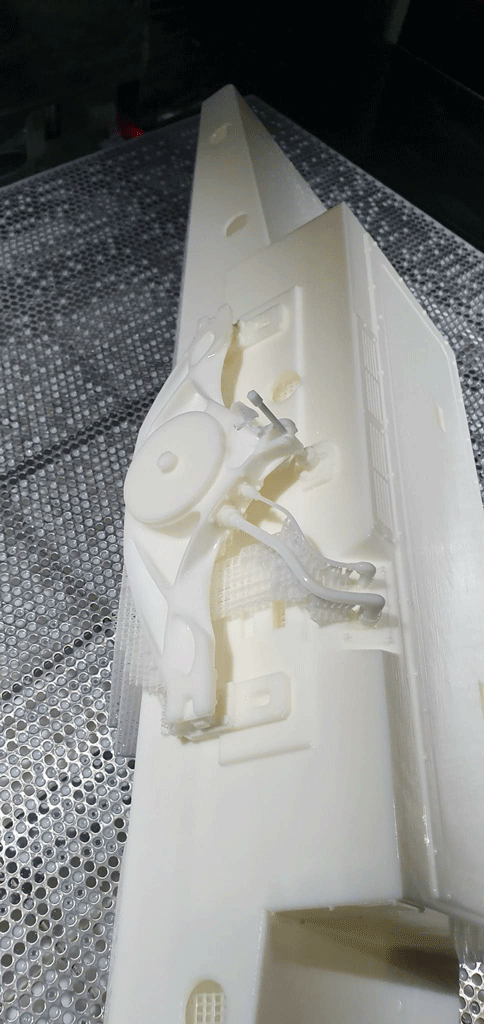

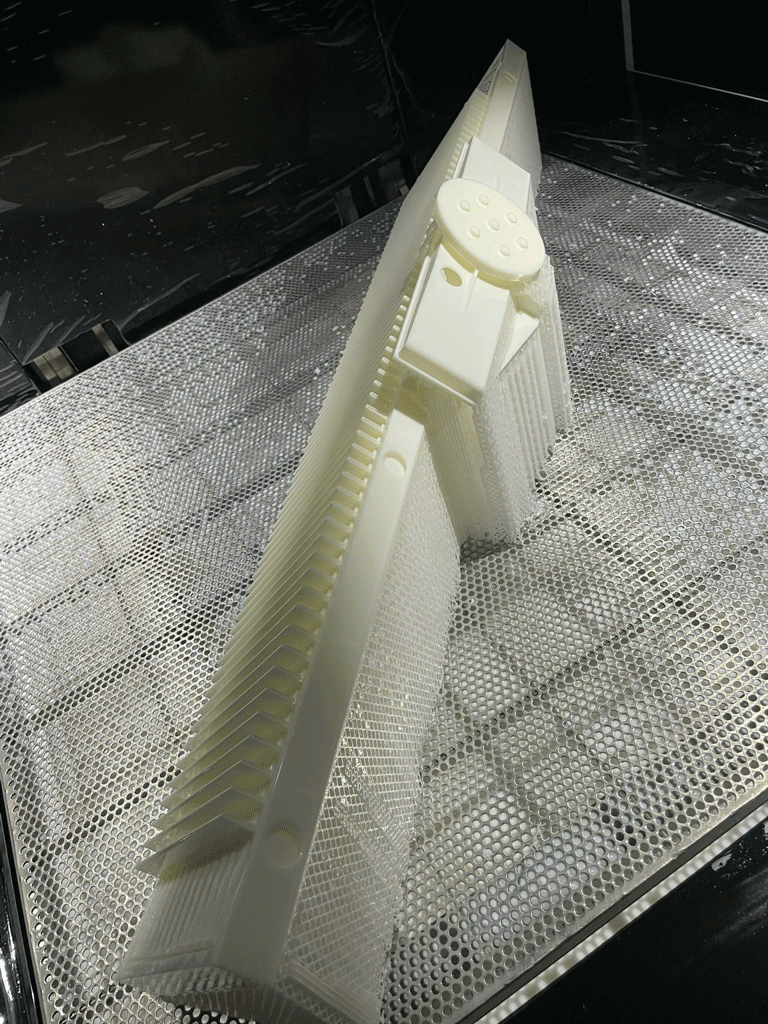

Radar model being printed inside an SLA 3D printer

Incredible Detail in Every Component – Precision Down to the Moving Joints

Once the parts are printed, Scantech’s team removes supports, polishes surfaces, and assembles each section with exceptional accuracy.

Functional elements like hydraulic stabilizers, a 360-degree rotating radar, and an openable dome make the model feel alive — just like the real deal.

Despite being a model, the functional parts allow it to be used as a hands-on tool for tactical scenario training.

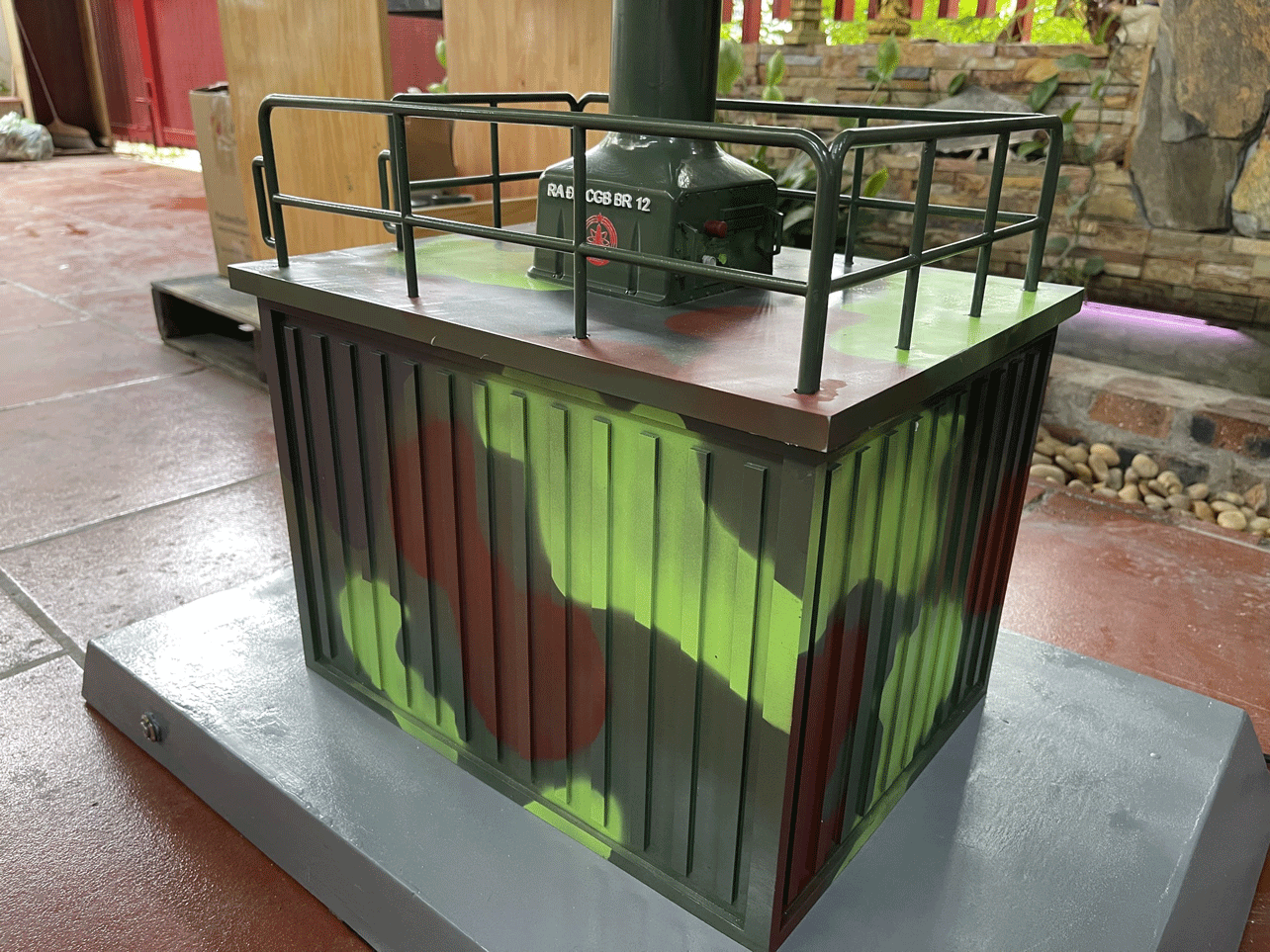

military radar model

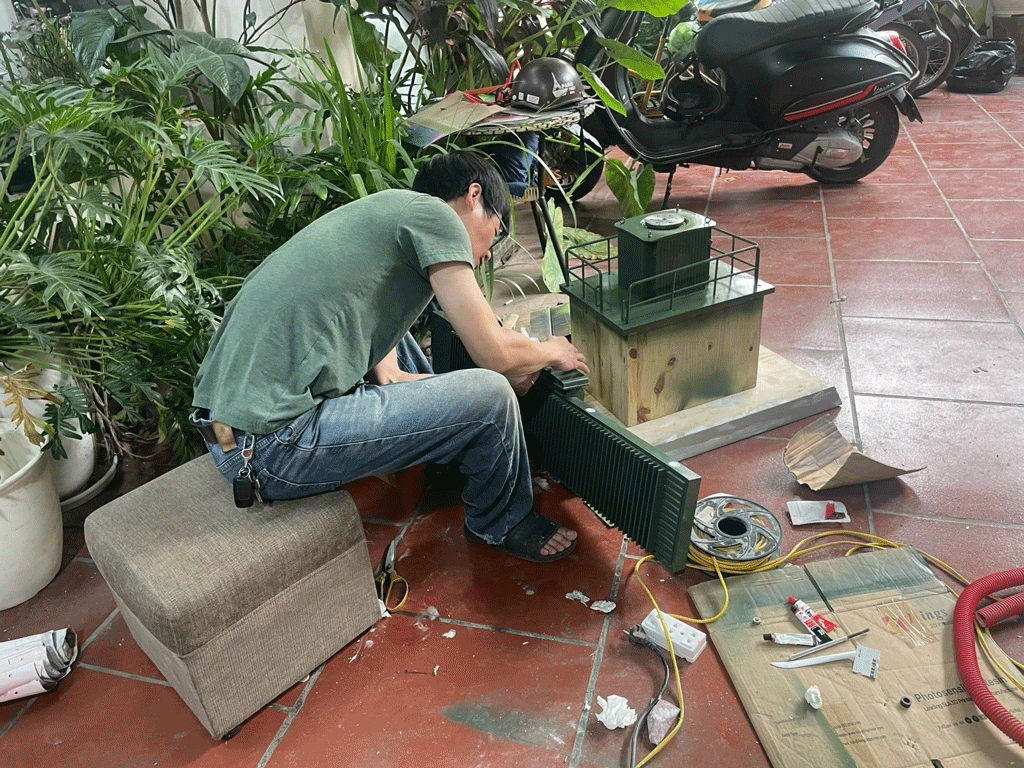

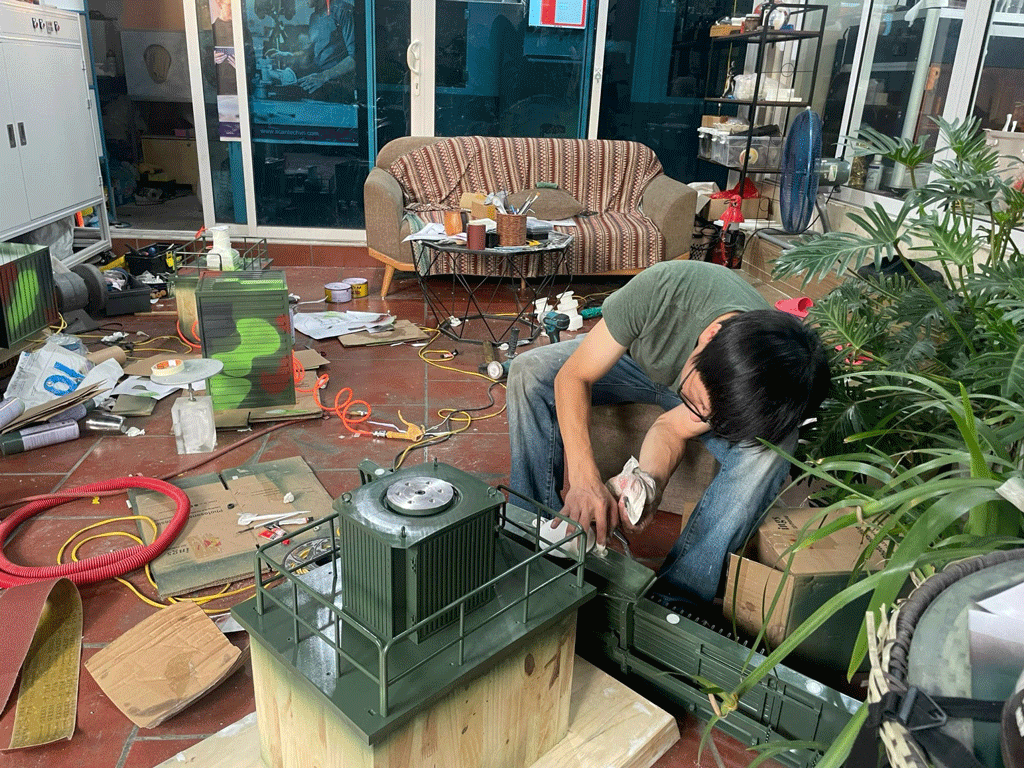

Technician assembling radar model

From Static Display to Tactical Simulation

This radar model is actively used in:

  • Defense industry exhibitions

  • Tactical training simulations

  • Technical presentations at military conferences

  • Scenario testing and field deployment planning

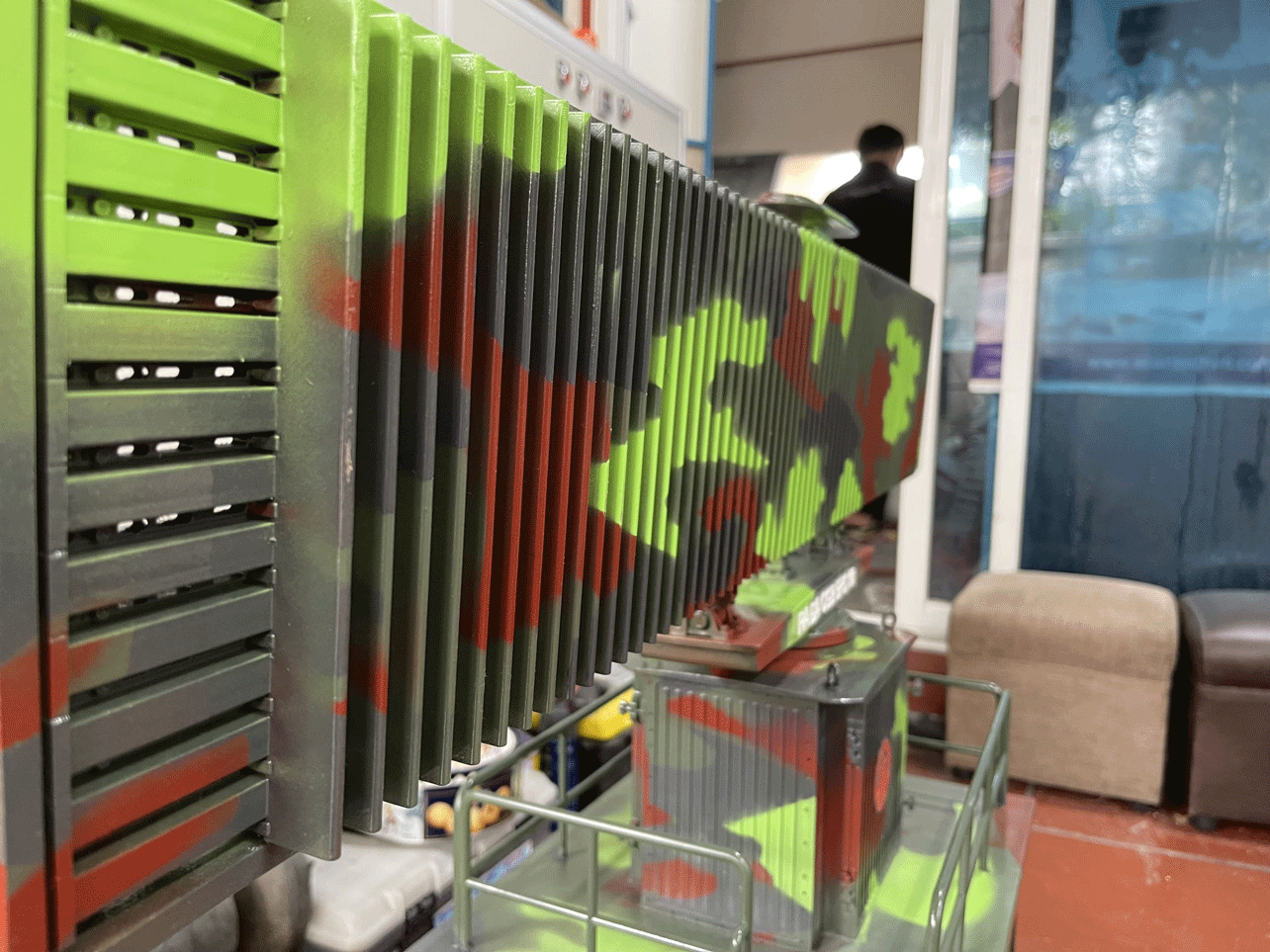

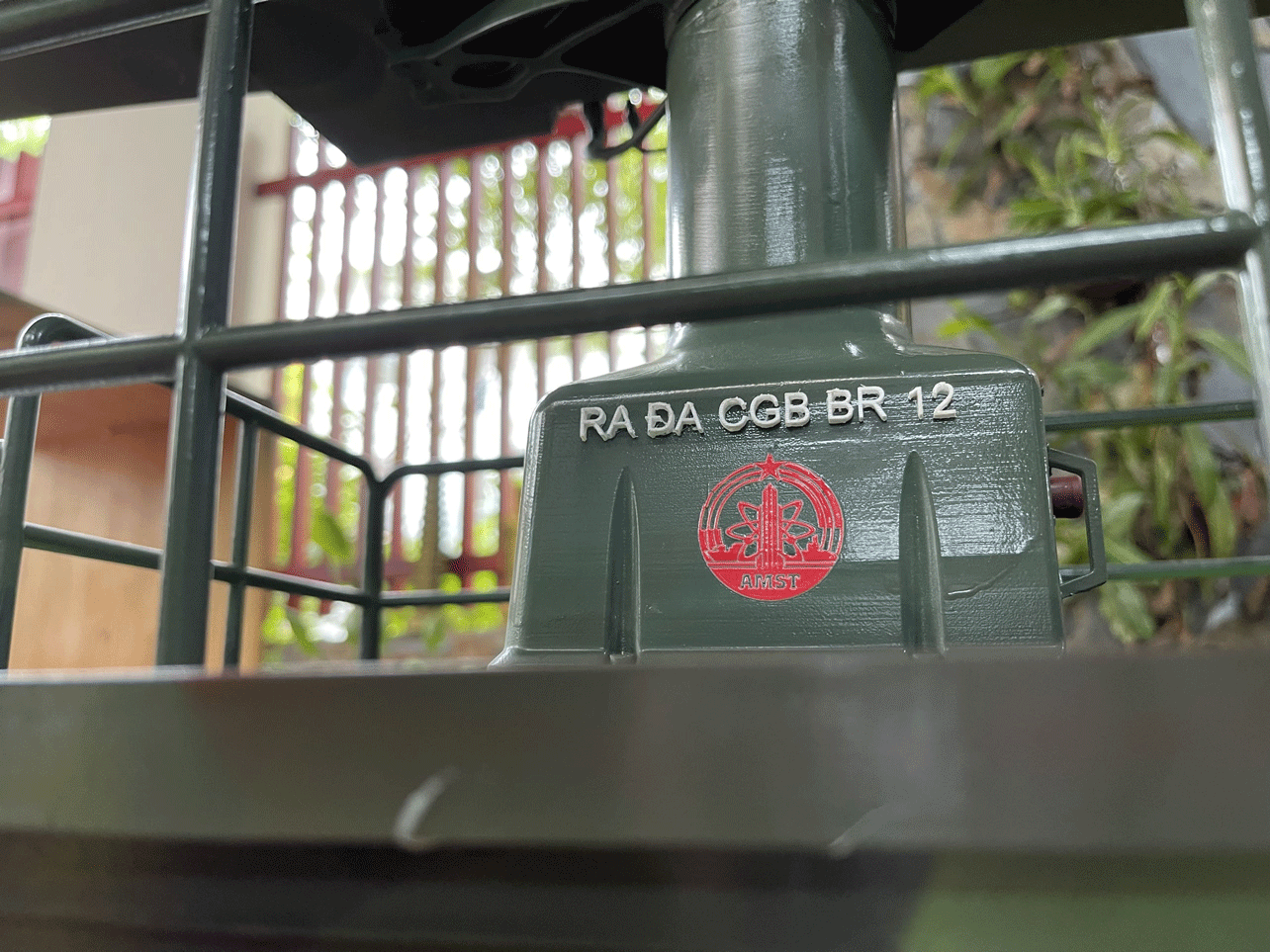

military radar model

military radar model

military radar model

Fully assembled BRS-18 radar model on display

📞 Contact Scantech – Turn Every Engineering Idea into Reality

From military radars to complex technical models, Scantech is your partner in turning designs into high-fidelity physical models.

We offer complete 3D printing solutions — from data processing and part segmentation to industrial resin printing, finishing, and nationwide delivery.

👉 Reach out to Scantech today for optimized costs, unmatched speed, and superior quality!

📞 Hotline: 08621700366
🌐 Website: https://scantechvn.com/
📘 Facebook: facebook.com/scantechvn
📩 Email: ktscantech@gmail.com
