3D Scanning Application in Crafting Buddha Statues from Gemstone Materials

Crafting Buddha statues from premium gemstone blocks—especially imported stones of high value—requires absolute precision and maximum material efficiency. To meet these demanding requirements, we apply 3D scanning technology to the carving process—a breakthrough solution that eliminates risks and reduces material waste.

This workflow not only ensures a flawless final sculpture but also allows investors to precisely manage material volume, thereby optimizing overall cost.

3D Scanning the Raw Stone Block: The Foundation of All Calculations

3D scanning is the first essential step to convert the physical gemstone block into accurate digital data:

Digital Twin Creation

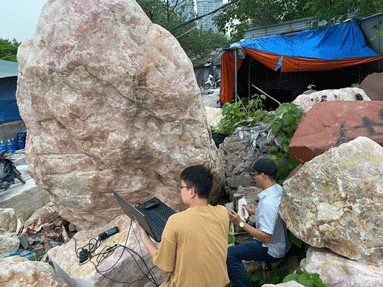

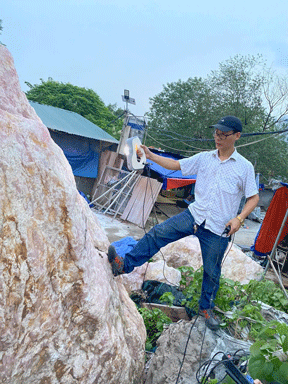

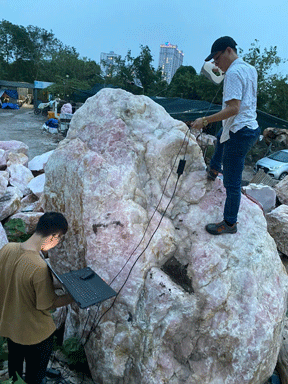

Using the Artec Eva scanner, we capture the full geometry, dimensions, and natural surface characteristics of the stone block.
This data is processed into a precise 3D mesh model—known as the digital twin of the gemstone.

Reverse Engineering

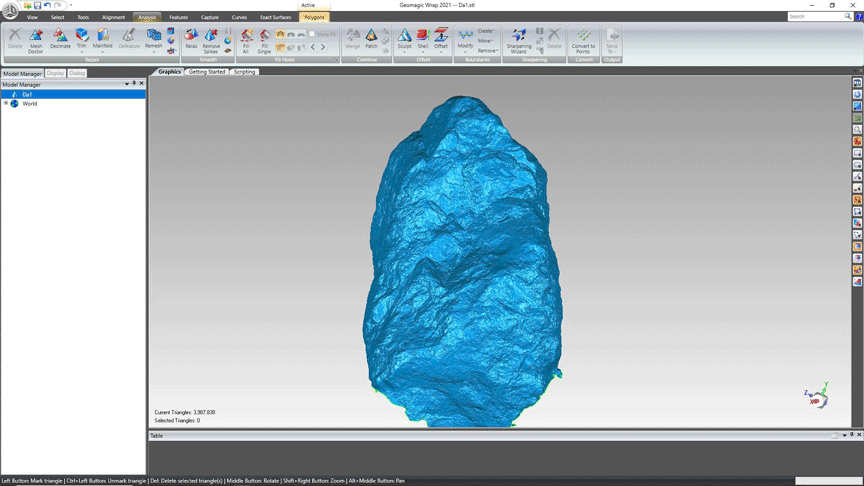

Specialized software is used to clean and refine the data, producing a flawless digital version of the raw stone ready for the next design phase.

Having a 3D model of the raw material is mandatory for intelligently planning Buddha statue fabrication and ensuring the statue fits optimally within the block.

Optimizing Statue Size & Position Inside the 3D Stone Model

The core objective of applying 3D scanning in Buddha statue fabrication is to achieve the largest possible statue size with minimal material waste.

Determining the Maximum Possible Size

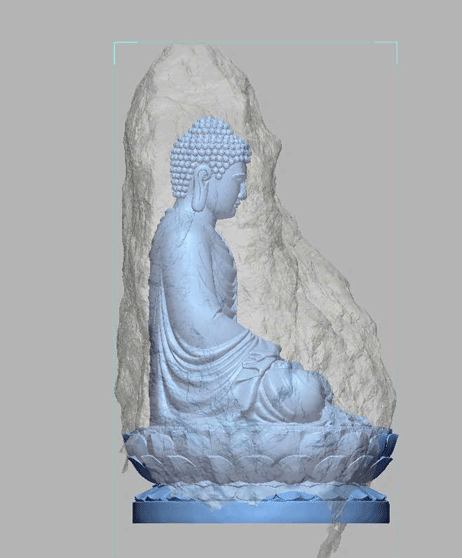

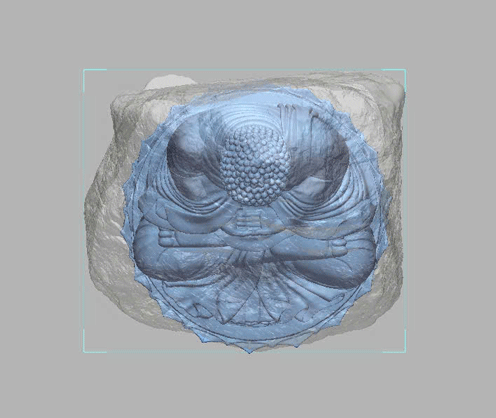

We insert the Buddha CAD model into the scanned 3D stone block:

• 3D Alignment: The statue is moved, rotated, and scaled gradually while maintaining a minimum “material safety margin” around the sculpture.

• Maximizing Dimensions: The final height, width, and depth are calculated to ensure the statue reaches its largest possible size without exceeding the stone’s natural boundaries.

Accurate Material Volume Calculation

Thanks to the scanned 3D model, all calculations become highly precise and transparent:

• Retained Volume: The software computes the exact volume of the optimized statue model, serving as the basis for estimating material value and carving cost.

• Waste Control: Remaining material volume is clearly defined, enabling investors to assess waste and material efficiency.

From 3D Scan Data to CNC Machining

Once the Buddha model is optimized, the 3D scan becomes the direct input for CNC machining.

Smart CAM Programming

The accurate raw stone model helps CAM engineers generate highly efficient toolpaths.
This reduces idle cutting time (“air cutting”), speeds up machining, and increases tool lifespan.

Quality Assurance

High-accuracy scan data ensures the carving process proceeds smoothly, without material shortages—even on irregular, complex stone blocks.

Boosting Efficiency & Artistic Value

3D scanning in Buddha statue fabrication is more than a technical method—it is a commitment to precision, cost-efficiency, and artistic excellence.
By combining high-accuracy scanning with optimized digital planning, we deliver premium Buddha sculptures while ensuring gemstone materials are used wisely and economically.
